hot sale PP PE Film Washing Line Waste Plastic Recycling Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Place Of Origin: | Shandong, China | Brand Name: | XIXIN |
|---|---|---|---|
| Application: | Recycle Waste Plastic | Condition: | New |
| Automatic Grade: | Automatic | Plastic Type: | PP/PE |
| Production Capacity (kg/h): | 900 - 1000 | Machine Type: | PP PE Film Washing Line |
| Equipment List: | Trommer | Max.Production Capacity (kg/h): | 1000 |
| Voltage: | 380V | Dimension(L*W*H): | 40*6*5.5 |
| Power (kW): | 270 | Weight (T): | 12 |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Video Outgoing-inspection: | Provided | Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Home Use, Retail |
| Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Pakistan, Mexico, Russia, Spain, Argentina, UAE, Algeria, Sri Lanka, Romania, Bangladesh | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 Year |
| Core Components: | Engine | Function: | Broken And Cleaning |
| MOQ: | 1PCS | After-sales Service Provided: | Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Russia, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina |
| Certification: | CE,ISO9001 |
Product Description
Product Application
Waste plastic pp pe film washing recycling machine
This washing recycling line adopt the Europe design with high quality. It used to recycling the waste PP/PE/HDPE/LDPE film,plastic bags, woven bags, sack and so on. We have many years experience in the plastic film recycling. We can customize make theline according to your requirpment.
We have special crusher,grinder machine for the film, sack, with special blades design and the mesh design;
so the output material is samller size but capacity is higher; It will help the washing the material more cleaning;
And save labor cost and save energy;
PP PE film washing recycling machine:

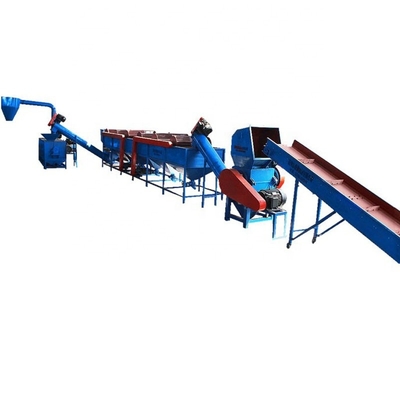

Belt conveyor →metal detector(Optional)→ Crusher (with water) → screw loader →Floating washer→screw loader →high speed friction machine →film dewatering machine→control cabinet
|
Model
|
Capacity
(kg/hr) |
Installed Power
(KW) |
Water Supply
(m3/hr ) |
Manpower
(person) |
Area Required
(L*W*H) |
|
xj-300
|
300
|
120
|
4-5
|
2-3
|
23mx5mx3.5m
|
|
xj-500
|
500
|
185
|
5-7
|
2-3
|
25mx6mx4.5m
|
|
Xj-600
|
600
|
200
|
7-9
|
2-3
|
29mx6mx4.5m
|
|
Xj-800
|
800
|
230
|
9-10
|
3-4
|
32mx6mx4.5m
|
|
ME-1000
|
1000
|
270
|
10-12
|
4-5
|
40mx6mx5.5m
|
Detailed Images

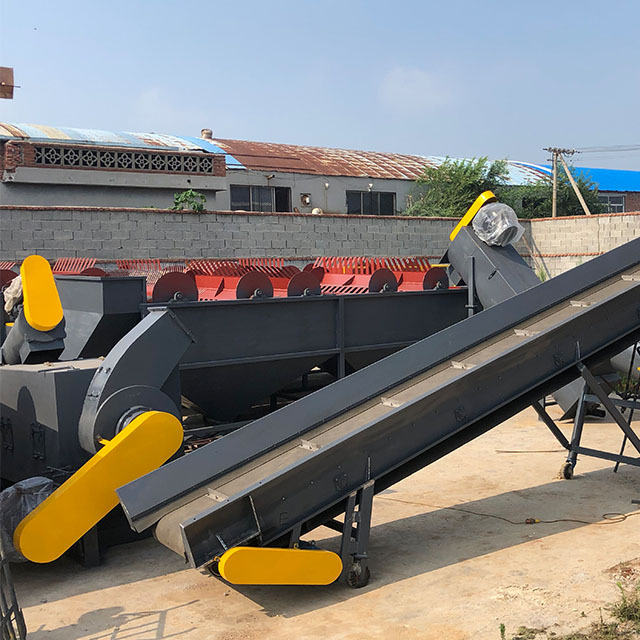

This part is suit for delivering waste plastic to the crusher machine.The metal detector is more conducive to extending the use time of the crusher cutter.

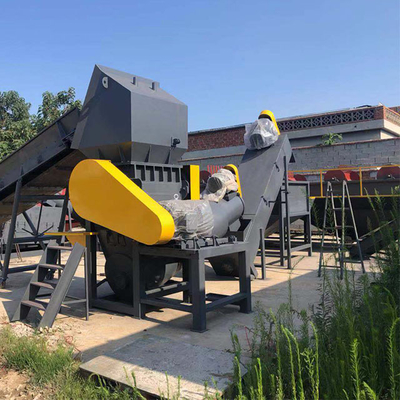

This machine is used for crushing waste plastic,Specially crushed plastic soft materials such as film and woven bag.All use Nanjing 9CrSi blades, reasonable knife design, uniform crushing material, easy replacement, and durableThe plastic shredder adopts sealed bearings to keep the bearing rotating well for a long time.The tool holder has passed the balance test and the performance is stable.
The crushed material is conveyed to the rinsing tank through the cleaning elevator.
Make the material entering the rinse tank cleaner
After two rinsing in the cleaning tank, the impurities in the material are deeply cleaned, and the impurities can be discharged through the bottom slag valve, reducing water waste and meeting environmental protection requirements

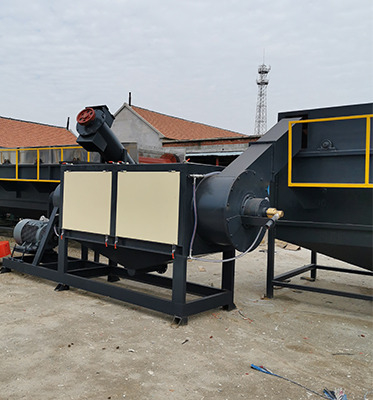

The high-speed friction cleaning machine mainly uses high-speed centrifugal force to completely remove impurities such as paper, labels, silt, etc., so that the materials from the first pool are cleaned by the high-speed friction washer, and the materials entering the second pool are cleaner.
Under the action of high-speed centrifugal force, the material from the pool will be dehydrated to meet the requirements of granulation

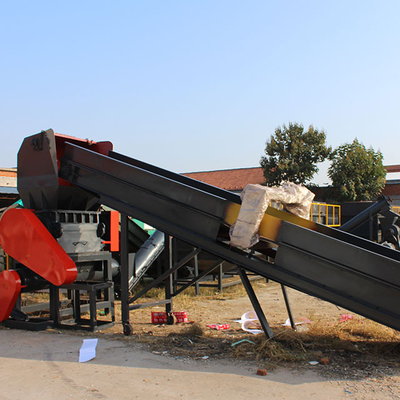

Export to Spain HDPE/LDPE plastic woven bag Crushing and washing line field test machine

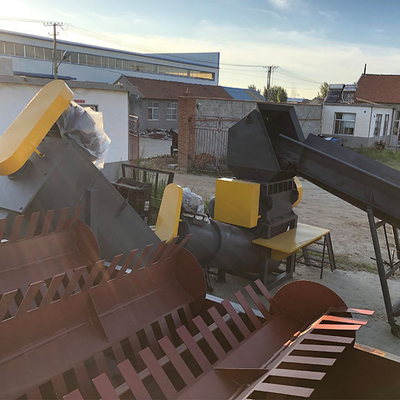

Export to Kenya PP/PE plastic film Crushing and washing line field test machine
Packing & Delivery
Related machines
FAQ
Q1: What's your factory MOQ and best price?
A1: We have no MOQ and 1 set machine order is also welcomed .We usually quote FOB Qingdao price ,but if you want to know the other
Price Term, we will try our best to meet with your demands.
Q2: This is the first time I use this kind of machine, is it easy to operate?
A2: There is English manual that show you how to use machine. If you still have any question, please contact us by e-mail / skype/
phone /whatsapp/trademanager online service.
Q3: How to install?
A3: We adjusted machines well before we deliver. When customers receive them, you can work with them directly.
Q4:How to ensure the safety?
A4: There have the overload and over heat protection, it ensure working people safety.
Q5:How long the machine can be used?
A5: It depends how you use your table saw, if use it in good maintenance, at least 8-10 years.
Q6:what is the Delivery time?
A6: Our delivery time is around 30 days. Before the machine arrive at the port, the shipping company will call you.
A1: We have no MOQ and 1 set machine order is also welcomed .We usually quote FOB Qingdao price ,but if you want to know the other
Price Term, we will try our best to meet with your demands.
Q2: This is the first time I use this kind of machine, is it easy to operate?
A2: There is English manual that show you how to use machine. If you still have any question, please contact us by e-mail / skype/
phone /whatsapp/trademanager online service.
Q3: How to install?
A3: We adjusted machines well before we deliver. When customers receive them, you can work with them directly.
Q4:How to ensure the safety?
A4: There have the overload and over heat protection, it ensure working people safety.
Q5:How long the machine can be used?
A5: It depends how you use your table saw, if use it in good maintenance, at least 8-10 years.
Q6:what is the Delivery time?
A6: Our delivery time is around 30 days. Before the machine arrive at the port, the shipping company will call you.
