| Condition: | New | Place Of Origin: | Shandong, China |
|---|---|---|---|
| Brand Name: | XIXIN | Type: | Granulating Production Line |
| Screw Design: | Single | Voltage: | 380V |
| Warranty: | 1 Year | Applicable Industries: | Retail, Factory |
| Material: | PP/PE | After-sales Service Provided: | Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support, Video Technical Support |
| Max. Capacity: | 3-20ton/day | Certification: | CE ,ISO9001 |
| Raw Material: | PE PP Waste Plastic |

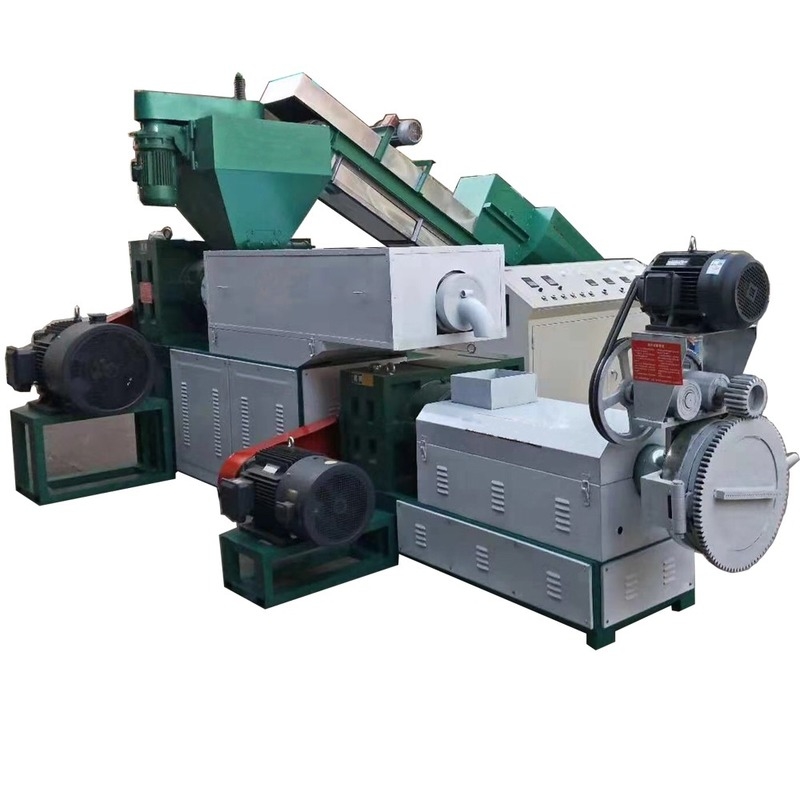

Our water ring granulating and pelletizing line is mainly for recycling waste PP and PE material. Our line is mainly including double stage exhaust extruding pelletizing unit, water ring die face cutting system, vertical dewater device, vibrating screen, air blowing system and storage hopper. The water ring granulating and palletizing line cut grains at fluidity, which is a new kind of machine for the waste plastic recycling and granulating. Compared with conversional cutting at solid state, the water ring die face cutting have obvious advantages.
|
Material
|
waste PP PE plastic
|
|
|
||
|
Main Function
|
Model
|
150-XX-EBZLJ
|
210-XX-EBZLJ
|
||
|
|
Capacity
|
5-6ton/day
|
8-10ton/day
|
||
|
|
Screw Diameter
|
150mm
|
210mm
|
||
|
|
Screw Material
|
40Cr, quenching and tempering and nitriding treatment
|
|
||
|
|
Motor Power
|
45KW
|
90KW
|
||
|
Auxiliary Extruder
|
Screw Diameter
|
135mm
|
190mm
|
||
|
|
Screw Material
|
40Cr, quenching and tempering and nitriding treatment
|
|
||
|
|
Motor Power
|
18.5KW
|
30KW
|
||
|
|
water ring machine head
|
dewatering device
|
viberating screen
|
||
|
|
storage hopper
|
fixed feeder
|
distribution cabinet
|
||
1) Different viscosity high polymer are adopted the cutting type, the waste plastic are scraped by the blade and circular cooling then soildity so there is no dust with grains,good quality, complete shape, easy to pack and transportation.
2)The size of the grains can be changed according to the extruding amount, then adjust the dischanging amount from the die and the cutting speed. The size and shape of the grains can also be changed by adjusting the number of blades(at most 4).
3)The viberating screen is for cooling the grains in classification and expel the impurity which achieve the automatic of the granulation process and convenient operation.
4)Our production line is automatic which can save human effort.
5)High production and low consumption which can save costs.
6)High quality electrical and drive device make the use of machinery more secure and reliable.
Name: Granulator Machine
Brand: XIXIN
Original: CHINA
Specially designed screw with single exhaust or axhaust structure enhances the plasticizing dispersion effect, making plastic particles solid and full.
We can make the production of nitrogen, chromium plating and other processing according to the customer's need to make the screw more durable.
Name: Granulator Loader
Brand: XIXIN
Original: CHINA
Deliver waste plastic to the granulator.
Name:hydraulic Pelletizing mold head
Brand: XIXIN
Original: CHINA
Name: Cooling Pool
Brand: XIXIN
Original: CHINA
The size of cooling pool is customized.
We can make it according to your production need.
2)Cutting Speed is adjustable by frequency inverter
3)Granule cutting
Name: Shaker
Brand: XIXIN
Original: CHINA
Made of 304 stainless steel, used for plastic granules grading.
Name: Storage Bin
Brand: XIXIN
Original: CHINA
Made of 304 stainless steel, used for the storage of
plastic granules.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal and use the machine.
* Engineers available to service machinery overseas.
* 1year warranty(except for consumablels).
1.How about the quality about this machine?
We have specialising in plastic machinery for more than 20 years. Our products are unanimously recognized by domestic and foreign customers.
2.How about the output about this machine?
The output differs from machine to machine. We have tested our machine for many times. The machine you bought can meet your demand.
3.What about your sales-after service?
We provide technical support, and business consulting.
