High Quality Plastic Recycling Washing Line Film Recycling Washing Production Line

All Products
PVC Pelletizing Line (4)
Water Ring Pelletizing Line (5)
Plastic Pelletizing Line (10)
Plastic Recycling Washing Line (6)
PP PE Film Washing Line (8)
Pipe Extruder Machine (5)
Blade Sharpening Machine (13)
Double Shaft Shredding Machine (8)
Hydraulic Baling Press (7)
Hydraulic Screen Changer (4)
I'm Online Chat Now
Certification
Good quality Water Ring Pelletizing Line for sales
Good quality Water Ring Pelletizing Line for sales

High Quality Plastic Recycling Washing Line Film Recycling Washing Production Line

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  High Quality Plastic Recycling Washing Line Film Recycling Washing Production Line Get Best Price

Product Details:
Place of Origin: Shandong, China
Brand Name: XIXIN
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $37,066.00 - $38,000.00
Packaging Details: customer's need
Supply Ability: 10 Set/Sets per Month
Contact Now
Detailed Product Description
Place Of Origin: Shandong, China Brand Name: XIXIN
Application: Recycle Plastic Washing Line Condition: New
Automatic Grade: Automatic Plastic Type: PP/PE
Production Capacity (kg/h): 500 - 1500 Machine Type: PP PE Film Washing Line
Equipment List: Pre-washer, Dewatering Machine, Floating Washing Tank, Frication Washer Max.Production Capacity (kg/h): 1500
Voltage: 380V Or Customized Weight (T): 8
Warranty: 1 Year Key Selling Points: Automatic
Video Outgoing-inspection: Provided Applicable Industries: Manufacturing Plant, Retail, Energy & Mining, Other
Showroom Location: Indonesia, Romania, Japan, Malaysia Machinery Test Report: Provided
Marketing Type: New Product 2020 Warranty Of Core Components: 1 Year
Core Components: Motor Raw Material: PP/PE Film, Bag
Min. Capacity: 500kg/h Color: Customized Color
After-sales Service: Online Technical Support, Spare Parts, Engineers Overseas Service

PRODUCTS DESCRIPTION
High Quality Plastic Recycling Washing Line Film Recycling Washing Production Line
Product Application
Waste plastic pp pe film washing recycling machine
This washing recycling line adopt the Europe design with high quality. It used to recycling the was PP/PE/HDPE/LDPE film,plastic bags, woven bags, sack and so on. We have many years experience in the plastic film recycling. We can customize make the line according to your requirpment.

We have special crusher,grinder machine for the film, sack, with special blades design and the mesh design;so the output material is samller size but capacity is higher; It will help the washing the material more cleaning;And save labor cost and save energy.

PP PE film washing recycling machine:

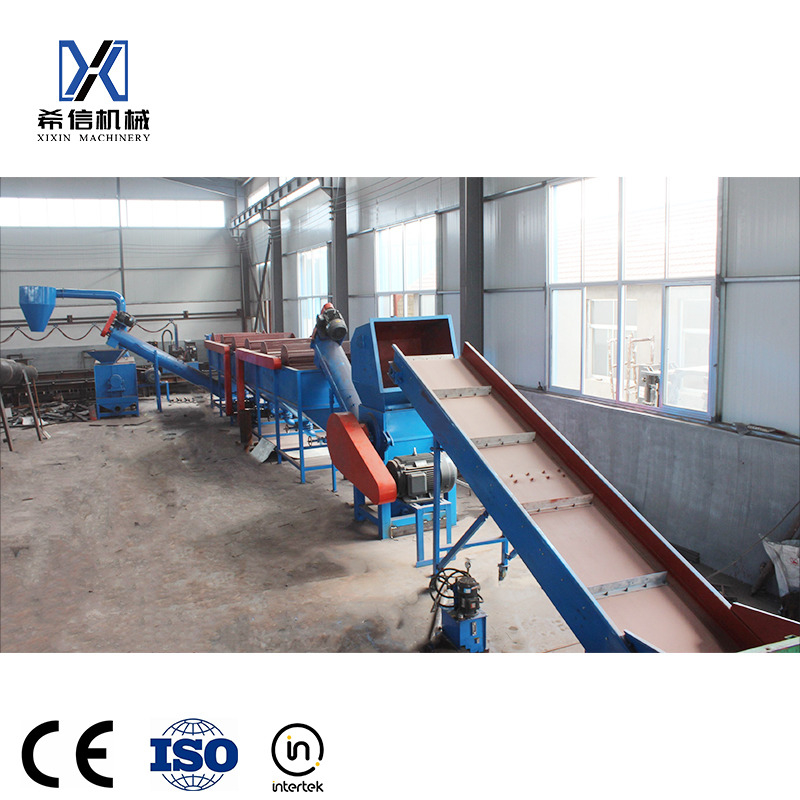

Belt Conveyor → Crusher (with water) → Friction Washing Machine →Cleaning Pool→→Horizontal Dewater Machine→Control Cabinet
Model
Capacity
kg/hr
Installed Power
KW
Water Supply
m3/hr
Water Supply
m3/hr
Area Required
L*W*H/m
300
300
120
4/5
2/3
23×5×3.5
500
500
185
5/7
2/3
25×6×4.5
600
600
200
7/9
2/3
29×6×4.5
800
800
230
9/10
3/4
30×6×4.5
1000
1000
270
10/12
4/5
40×6×4.5
High Quality Plastic Recycling Washing Line Film Recycling Washing Production Line
High Quality Plastic Recycling Washing Line Film Recycling Washing Production Line
High Quality Plastic Recycling Washing Line Film Recycling Washing Production Line
High Quality Plastic Recycling Washing Line Film Recycling Washing Production Line

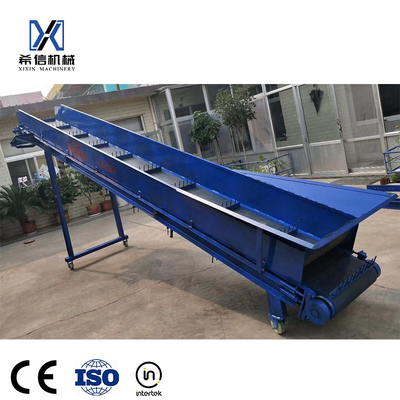

Belt Conveyor:
This part is suit for delivering waste plastic to the crusher machine.

The metal detector is more conducive to extending the use time of the crusher cutter.

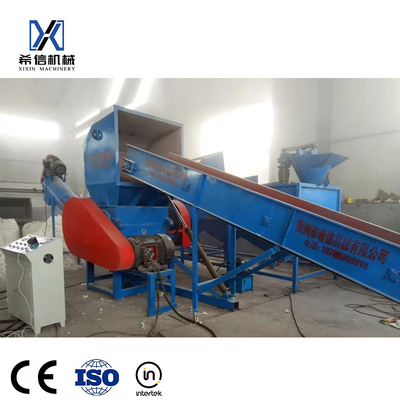

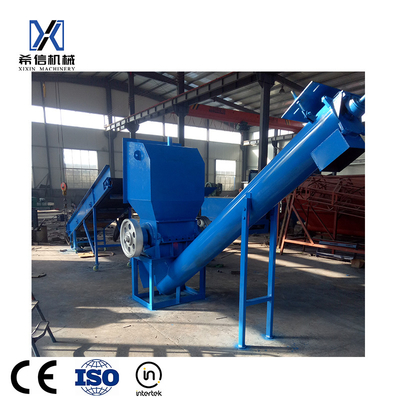

Crusher (with water):
This machine is used for crushing waste plastic,Specially crushed plastic soft materials such as film and woven bag.
High Quality Plastic Recycling Washing Line Film Recycling Washing Production Line
High Quality Plastic Recycling Washing Line Film Recycling Washing Production Line

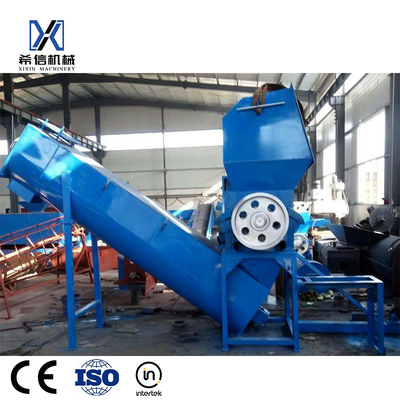

High speed friction machine
The high-speed friction cleaning machine mainly uses high-speed centrifugal force to completely remove impurities such as
paper,labels,silt,etc., so that the materials in the first tank are cleaned by the high-speed friction cleaning machine. It is
cleaner to enter the second washing tank.

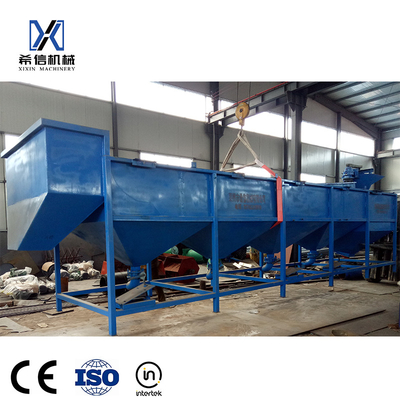

Cleaning The Pool:
After two rinsing in the cleaning tank, the impurities in the material are deeply cleaned, and the impurities can be discharged
through the bottom slag valve, reducing water waste and meeting environmental protection requirements
High Quality Plastic Recycling Washing Line Film Recycling Washing Production Line
High Quality Plastic Recycling Washing Line Film Recycling Washing Production Line


Horizontal dehydrator:
Mainly used for plastic film, adhesive tape and other hardness is not high, small size of the sheet or strip plastic cleaning. Has
the a( dvantages of high speed, low noise, high efficiency and energy saving)Under the action of high-speed centrifugal force, the
material from the pool will be dehydrated to meet the requirements of granulation.
High Quality Plastic Recycling Washing Line Film Recycling Washing Production Line
High Quality Plastic Recycling Washing Line Film Recycling Washing Production Line

Rich experience

Our company has more than 25 years of experience in the field of plastic recycling, and our machines are sold to many different countries, such as Romania, Indonesia, Africa, Malaysia and Japan.
High Quality Plastic Recycling Washing Line Film Recycling Washing Production Line
Export to Spain HDPE/LDPE plastic woven bag Crushing and washing line field test machine

Export to Kenya PP/PE plastic film Crushing and washing line field test machine




Q1: What's your factory MOQ and best price?
A1: We have no MOQ and 1 set machine order is also welcomed .We usually quote FOB Qingdao price ,but if you want to know the other Price Term, we will try our best to meet with your demands.

Q2: This is the first time I use this kind of machine, is it easy to operate?
A2: There is English manual that show you how to use machine. If you still have any question, please contact us by e-mail / skype/phone /whatsapp/trademanager online service.

Q3: How to install?
A3: We adjusted machines well before we deliver. When customers receive them, you can work with them directly.

Q4:How to ensure the safety?
A4: There have the overload and over heat protection, it ensure working people safety.

Q5:How long the machine can be used?
A5: It depends how you use your table saw, if use it in good maintenance, at least 8-10 years.

Q6:what is the Delivery time?
A6: Our delivery time is around 30 days. Before the machine arrive at the port, the shipping company will call you.
A6: Our delivery time is around 30 days. Before the machine arrive at the port, the shipping company will call you.
