Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Place Of Origin: | Shandong, China |
|---|---|---|---|
| Brand Name: | XIXIN | Type: | Granulating Production Line |
| Screw Design: | Single | Voltage: | 380V |
| Warranty: | 1 Year | Applicable Industries: | Retail, Factory |
| Material: | PP/PE | After-sales Service Provided: | Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support, Video Technical Support |
| Max. Capacity: | 3-20ton/day | Certification: | CE ,ISO9001 |
| Raw Material: | PE PP Waste Plastic HDPE LDPE LLDPE PA PS ABS |

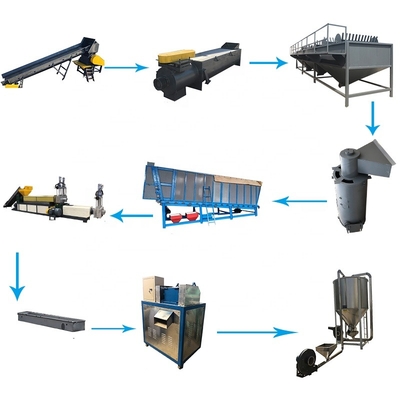

Production Process:
1. There are various types of soft tooth surface, medium hard tooth surface, hard tooth surface low noise reducer for selection;
2. The main machine and the three machine barrels adopt international seamless steel tubes. The two machine barrels are made of
40CR, the inner wall is quenched by high frequency, and the alloy is coated with alloy (nickel, manganese, cobalt, etc.).
3. The screw adopts Laigang 45# carbon structure, modulation treatment, coating all alloys (nickel, manganese, cobalt, etc.);
alloy material: carbide alloy, cobalt tungsten carbide, nickel chromium chromium carbide; heat treatment: spraying bimetal
alloy layer , surfacing process, centrifugal casting.
4. The second machine adopts the net filter independently developed by our company. This product is widely used in the waste
plastics processing industry and has revolutionary significance. It can realize automatic slag discharge without stopping.
This product is superior to other manufacturers in terms of durability. Strong, easy to operate, low cost, the first
filtration can reach 20 mesh, with secondary filtration up to 60 mesh or more; the company supplies various supporting
equipment for plastic granulator, powder (torn) crusher, cleaning separation line , automatic feeding machine, high frequency
electromagnetic heating, motor, frequency converter, power distribution cabinet, water tank, pelletizer, blowing machine,
silo, etc.
|
主要性能
Main performance |
适用材料
applicable material |
LDPE,HDPE,etc
|
|
|
|
|||
|
|
型号
Model |
260 model Third stage machine washing film special extrusion granulation unit
|
300 model Third stage machine washing film special extrusion granulation unit
|
|
|
|||
|
主挤出机
Main extruder |
螺杆直径
Screw diameter |
Φ260mm
|
Φ300mm
|
|
|
|||
|
|
长径比
L/D |
16:1
|
16:1
|
|
|
|||
|
|
螺杆机筒材料
Screw/barrel material |
40CR, 45#Steel
|
|
|
|
|||
|
|
齿轮箱形式
Gearbox type |
Hard gear reducer
|
|
|
|
|||
|
|
电机功率
Motor power |
80KW
|
|
160KW
|
|
|||
|
副挤出机
Secondary extruder |
螺杆直径
Screw diameter |
Φ240mm
|
|
Φ260mm
|
|
|||
|
|
长径比
L/D |
9:1
|
|
9:1
|
|
|||
|
|
螺杆机筒材料
Screw/barrel material |
40CR, 45#Steel
|
|
|
|
|||
|
|
齿轮箱形式
Gearbox type |
Hard gear reducer
|
|
|
|
|||
|
|
电机功率
Motor power |
45KW
|
|
|
75KW
|
|||
|
第三阶段挤出机
Third stage extruder |
螺杆直径
Screw diameter |
Φ220mm
|
|
|
Φ260mm
|
|||
|
|
长径比
L/D |
13:1
|
|
|
9:1
|
|||
|
|
螺杆机筒材料
Screw/barrel material |
40CR, 45#Steel
|
|
|
40CR, 45#Steel
|
|||
|
|
齿轮箱形式
Gearbox type |
Hard gear reducer
|
|
|
Hard gear reducer
|
|||
|
|
电机功率
Motor power |
45KW
|
|
|
75KW
|
|||
|
其他外设装置
Other peripheral devices |
喂料机
Feeder |
1000 model feeder
|
|
|
1000 model feeder
|
|||
|
|
冷却水槽
Cooling sink |
4m
|
|
|
4m
|
|||
|
|
切粒机
Cutting granule machine |
7.5KW
|
|
|
|
|||
|
|
震动筛
Plastic shaker |
200V60HZ
|
|
|
|
|||
|
|
储料仓
Storage tank |
2T
|
|
|
|
|||
1) Different viscosity high polymer are adopted the cutting type, the waste plastic are scraped by the blade and circular cooling then soildity so there is no dust with grains,good quality, complete shape, easy to pack and transportation.
2)The size of the grains can be changed according to the extruding amount, then adjust the dischanging amount from the die and the cutting speed. The size and shape of the grains can also be changed by adjusting the number of blades(at most 4).
3)The viberating screen is for cooling the grains in classification and expel the impurity which achieve the automatic of the granulation process and convenient operation.
4)Our production line is automatic which can save human effort.
5)High production and low consumption which can save costs.
6)High quality electrical and drive device make the use of machinery more secure and reliable.
Name: Granulator Machine
Brand: XIXIN
Original: CHINA
Specially designed screw with single exhaust or axhaust structure enhances the plasticizing dispersion effect, making plastic particles solid and full.
We can make the production of nitrogen, chromium plating and other processing according to the customer's need to make the screw more durable.
Name: Granulator Loader
Brand: XIXIN
Original: CHINA
Deliver waste plastic to the granulator.
Name:hydraulic Pelletizing mold head
Brand: XIXIN
Original: CHINA
Name: Cooling Pool
Brand: XIXIN
Original: CHINA
The size of cooling pool is customized.
We can make it according to your production need.
2)Cutting Speed is adjustable by frequency inverter
3)Granule cutting
Name: Shaker
Brand: XIXIN
Original: CHINA
Made of 304 stainless steel, used for plastic granules grading.
Name: Storage Bin
Brand: XIXIN
Original: CHINA
Made of 304 stainless steel, used for the storage of
plastic granules.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal and use the machine.
* Engineers available to service machinery overseas.
* 1year warranty(except for consumablels).
1.How about the quality about this machine?
We have specialising in plastic machinery for more than 20 years. Our products are unanimously recognized by domestic and foreign customers.
2.How about the output about this machine?
The output differs from machine to machine. We have tested our machine for many times. The machine you bought can meet your demand.
3.What about your sales-after service?
We provide technical support, and business consulting.
